Main Wiring Diagram Index, WD 01 pages 01-17 - Audi 100, A6 1992-1998

Audi A6, 100 · 1992–1997
⚠ Cautions and WarningsBefore doing any work, read Cautions and Warnings.Click here to read them →

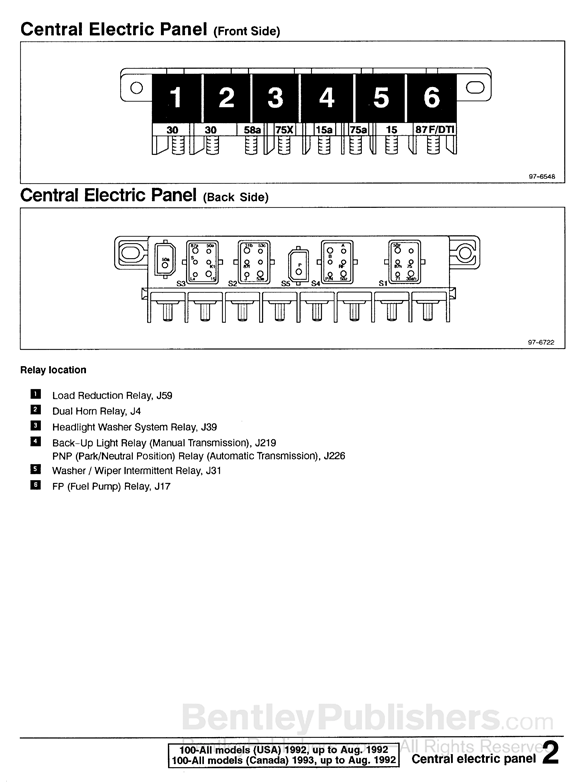

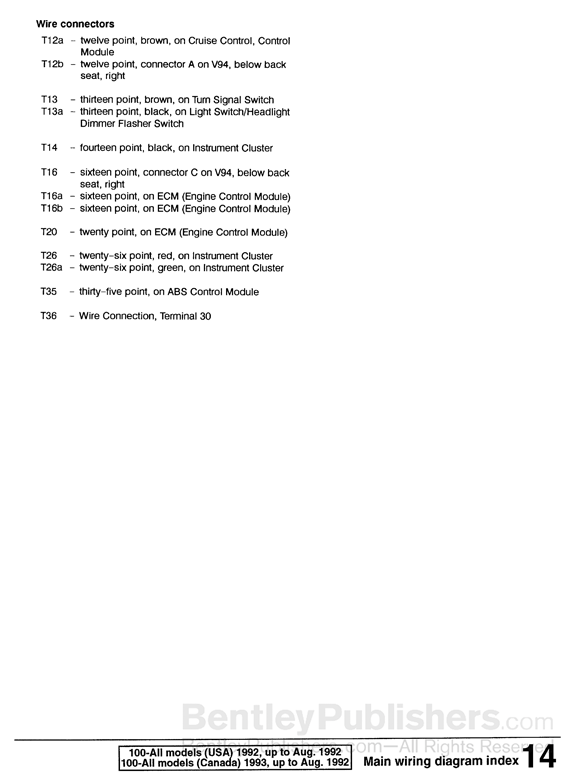

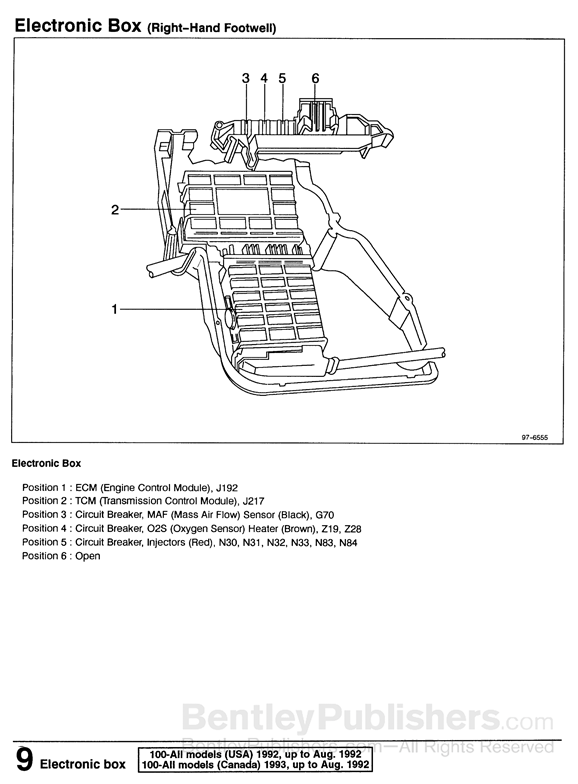

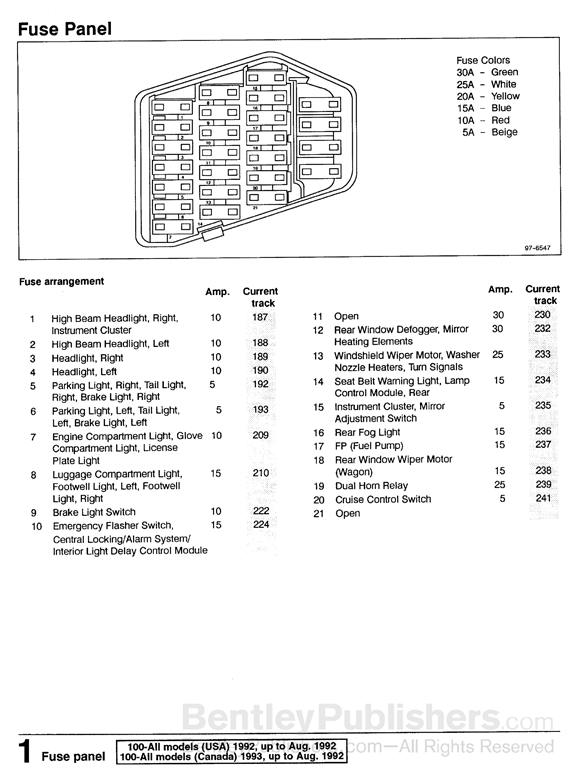

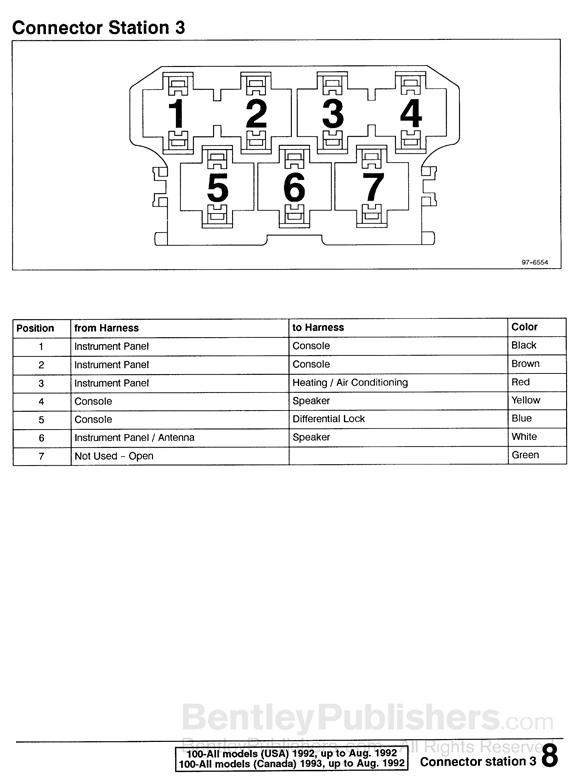

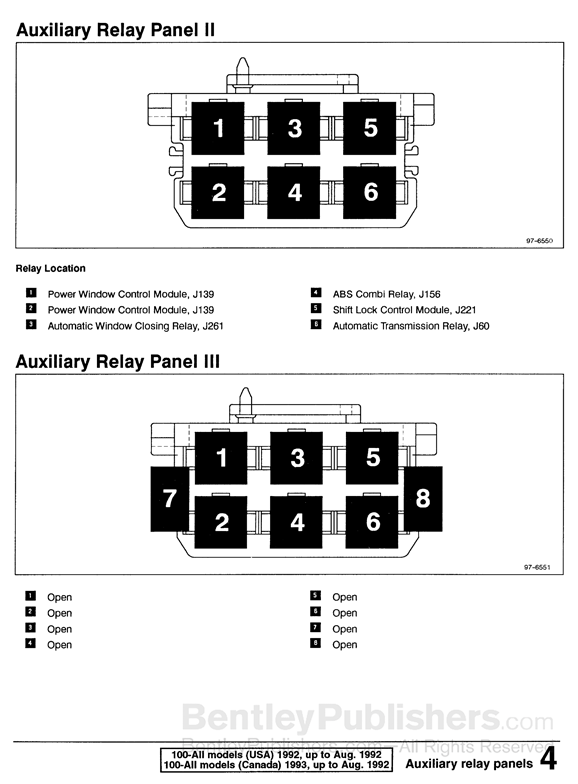

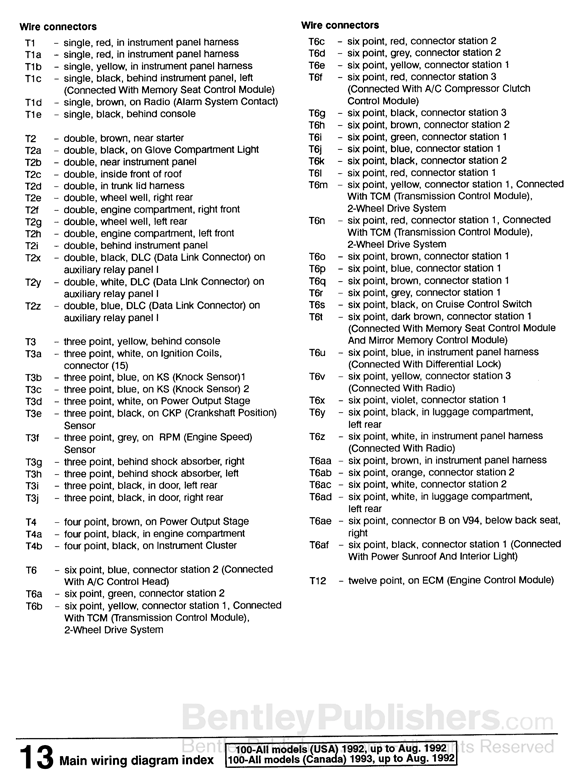

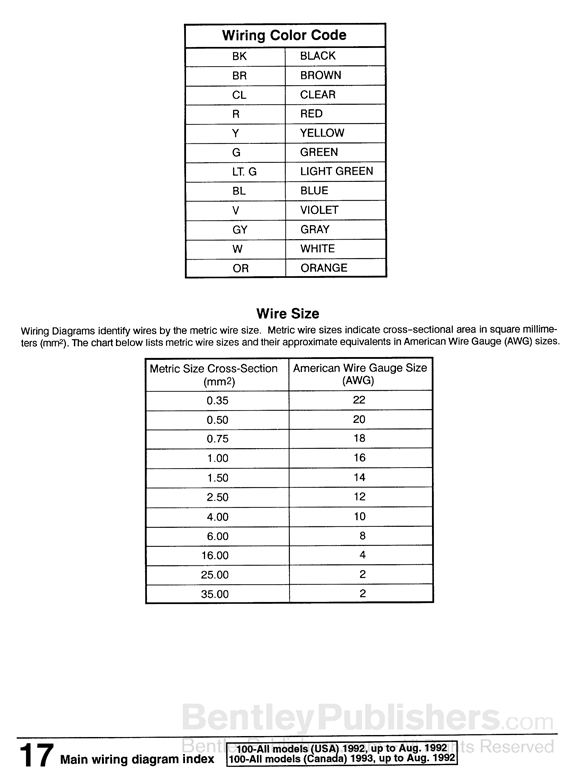

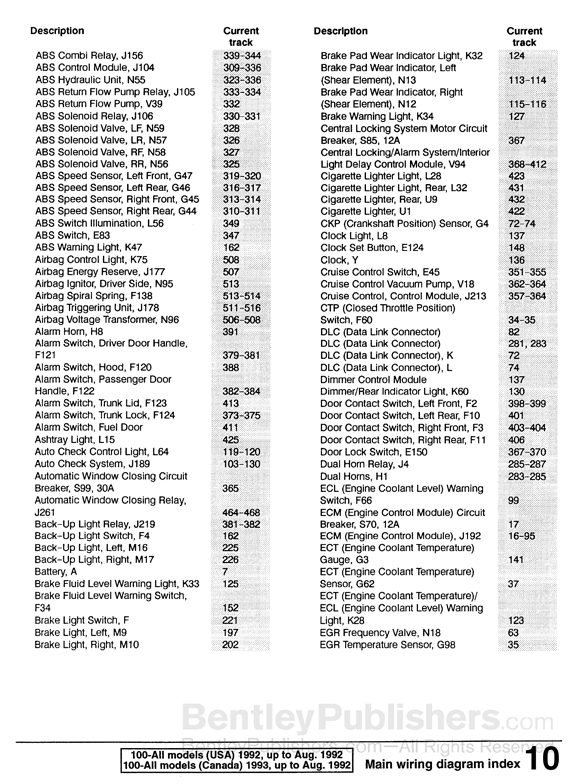

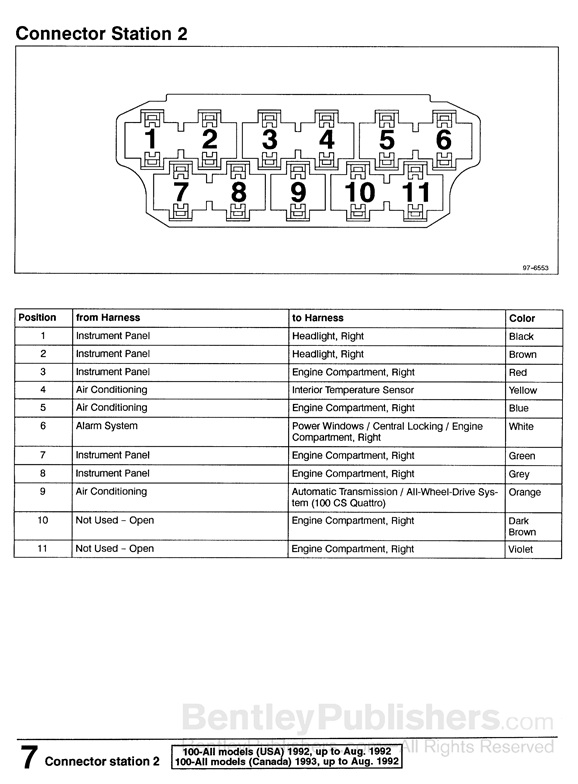

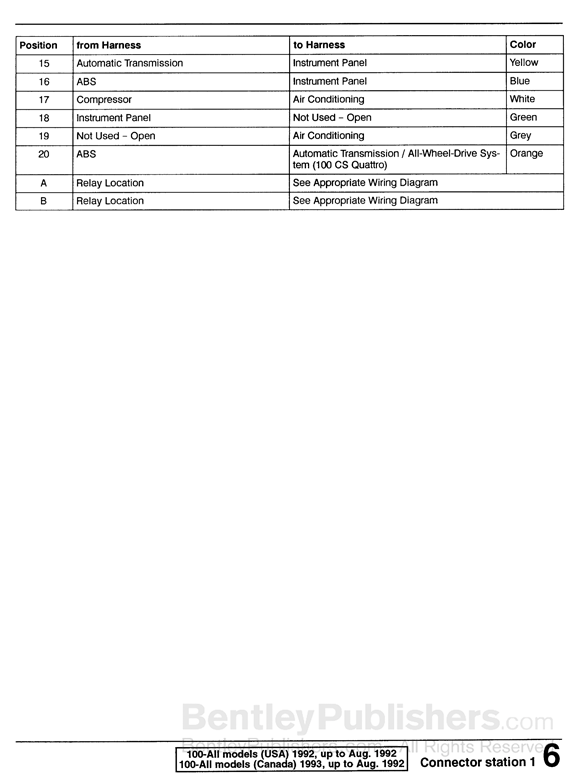

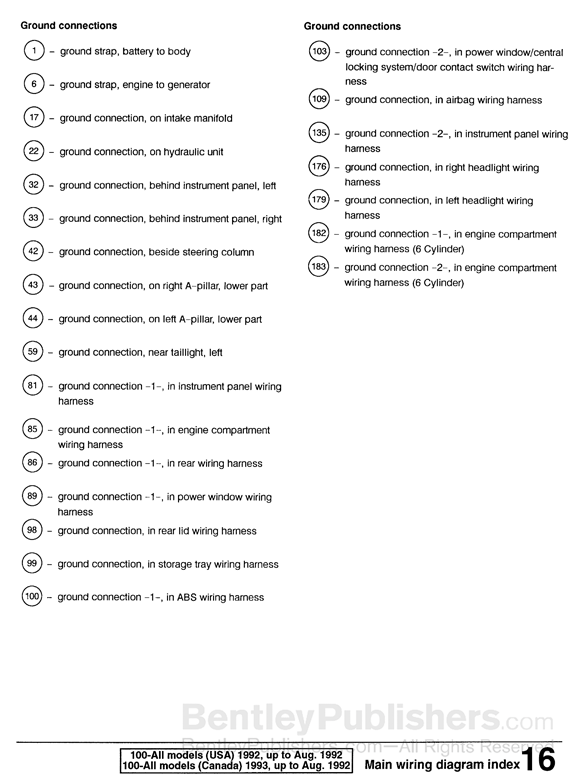

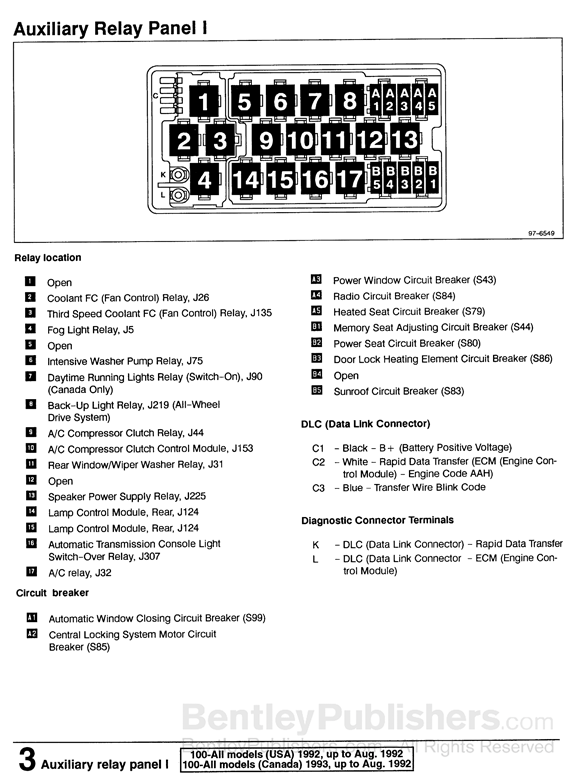

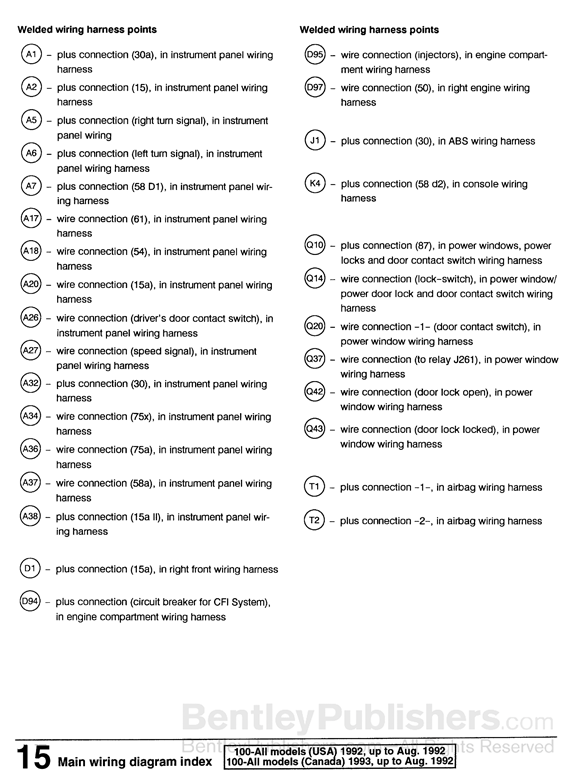

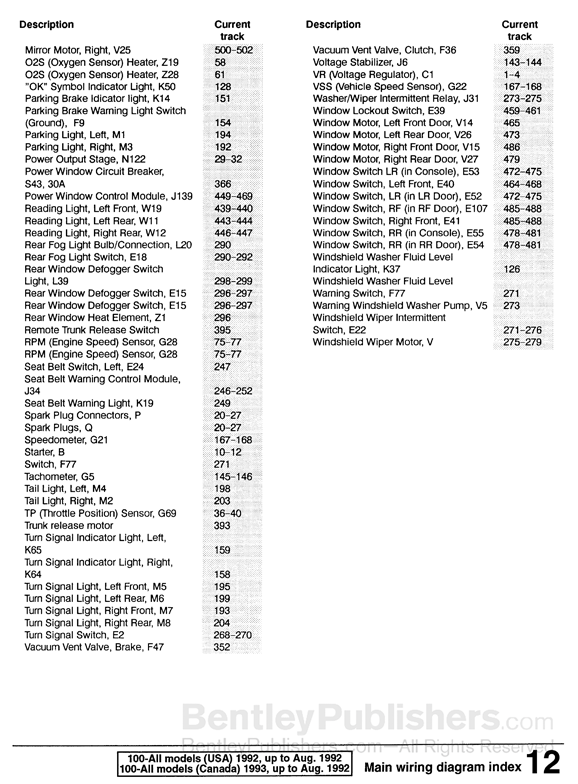

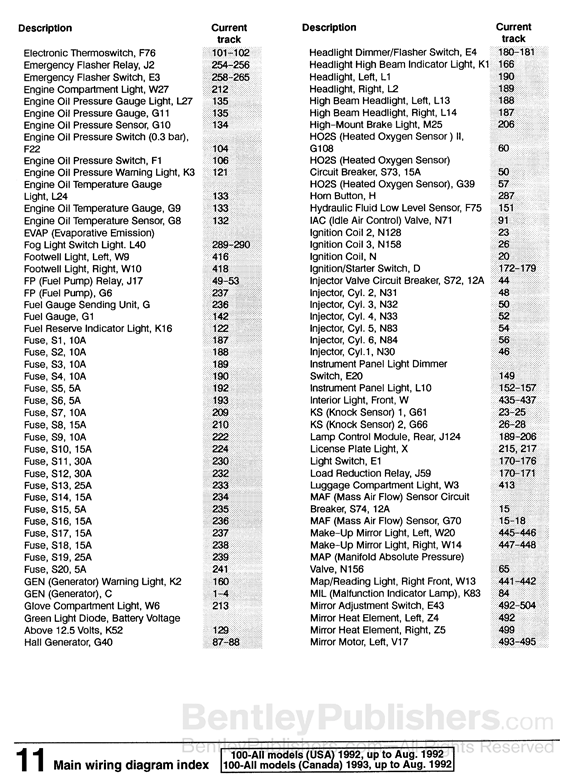

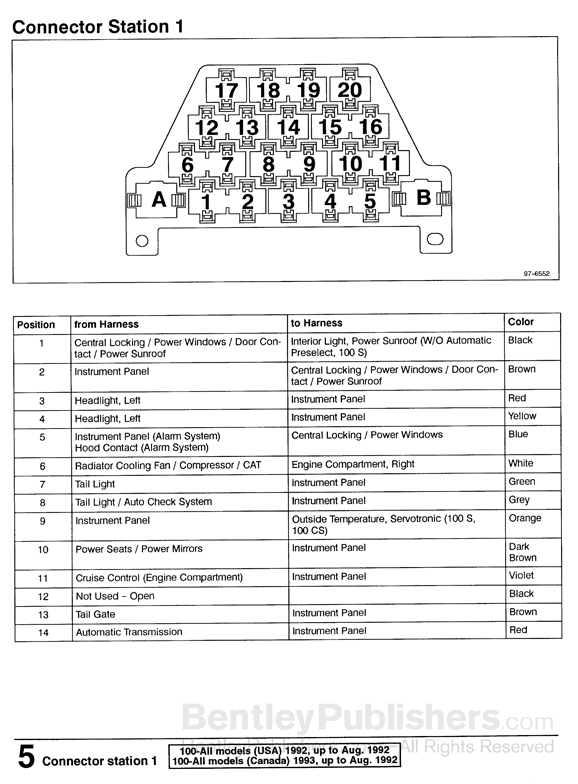

Abstract: This page documents pages 1 through 17 of Wiring Diagram 01 which were omitted from the Audi 100, A6 electronic manual.

Click here to download the PDF
