Audi A6 (C5 platform) rear strut assembly, quattro

Abstract: How to disassemble and assemble rear strut (shock absorber) on Audi A6 quattro, C5 platform

Applies to: Audi A6 1998 - 2004 (C5 platform)

Shock absorber (quattro), disassembling and assembling

The following tools are required for this job:

• Spring compressor (Volkswagen spring compressor kit VAG 1752 or equivalent).

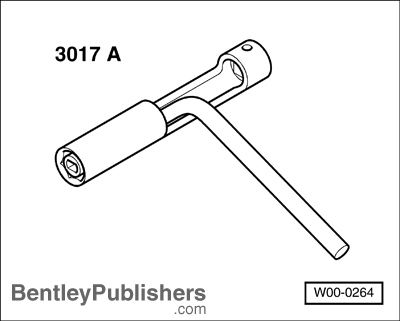

• Volkswagen special wrench 3017 A or equivalent.

Disassembling

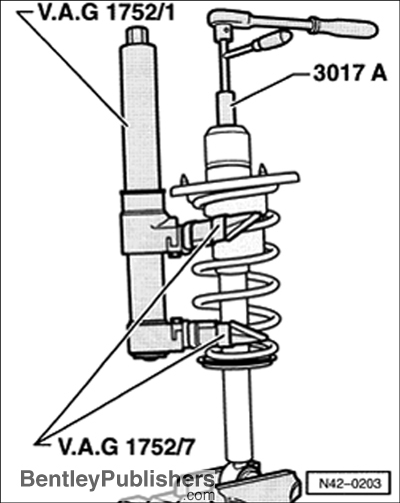

• Install spring compressor (VAG1752/1 or equivalent) onto coil spring.

• Pre-load coil spring using Spring Compressor VAG1752/1 far enough until top shock absorber mount is free.

• Remove nut from push rod using Volkswagen special wrench 3017 A or equivalent.

• Remove coil spring and individual parts from shock absorber.

Assembling

Installation is performed in the reverse order of removal, noting the following:

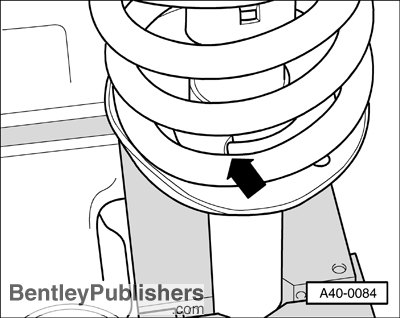

• Top and bottom ends of spring must rest against stop of spring support (arrow). Illustration shows lower spring end. Lower spring end must point toward center of vehicle.

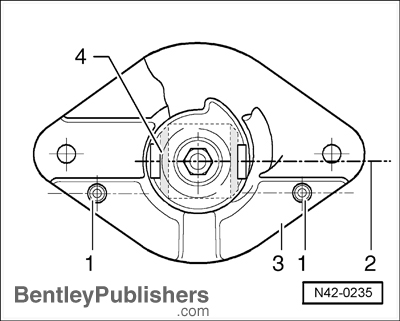

Installed position of shock absorber mount (3):
Mount bolts (1) must align with axis (2) of bottom shock absorber bushing (4).
Mount bolts (1) face outside of vehicle.
