BMW 5 Series E39 Oil filter housing gasket, replacing (M52, M52 TU, M54 engines)

Oil filter housing bracket (pedestal), removing and installing (M52, M52 TU, M54 engines)

• Disconnect battery negative cable.
• Loosen oil filter cover to allow oil in filter housing to flow into oil pan.
• Remove alternator drive belt and unbolt alternator from oil filter housing bracket.
• Empty power steering reservoir tank and then unbolt tank and move to one side (lines remain connected).
• Unbolt power steering pump from oil filter housing bracket pump (lines remain connected).
• Remove alternator drive belt tensioner.

• Disconnect harness connector from oil pressure switch.
• Disconnect harness connector for oil temperature switch.
• Disconnect oil pressure line for VANOS adjustment unit from oil filter housing.

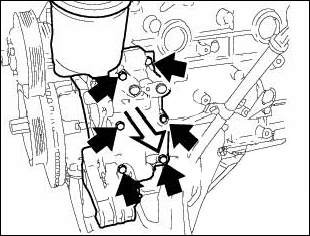

• Remove bolts (arrows) and remove complete oil filter housing bracket.

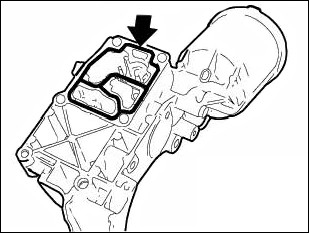

• Remove old profile gasket and install new gasket (arrow).

Installation is reverse of removal. Keep in mind the following:

• BMW does not specify a unique torque for the oil filter housing bracket bolts. General tightening torque based on bolt grade is given below.

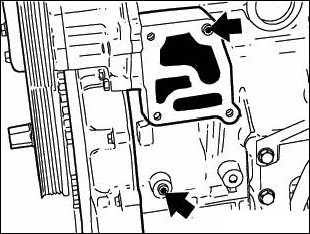

• Be sure to align bracket to locating dowels (arrows).

• Reconnect all harness connectors previously removed.

• Check engine oil level and power steering fluid level upon job completion.

• Reconnect battery negative cable.
