Wiring Diagram - L98 Engine 1985-1991 (GFCV)

Chevrolet Corvette · 1955–2001
⚠ Cautions and WarningsBefore doing any work, read Cautions and Warnings.Click here to read them →

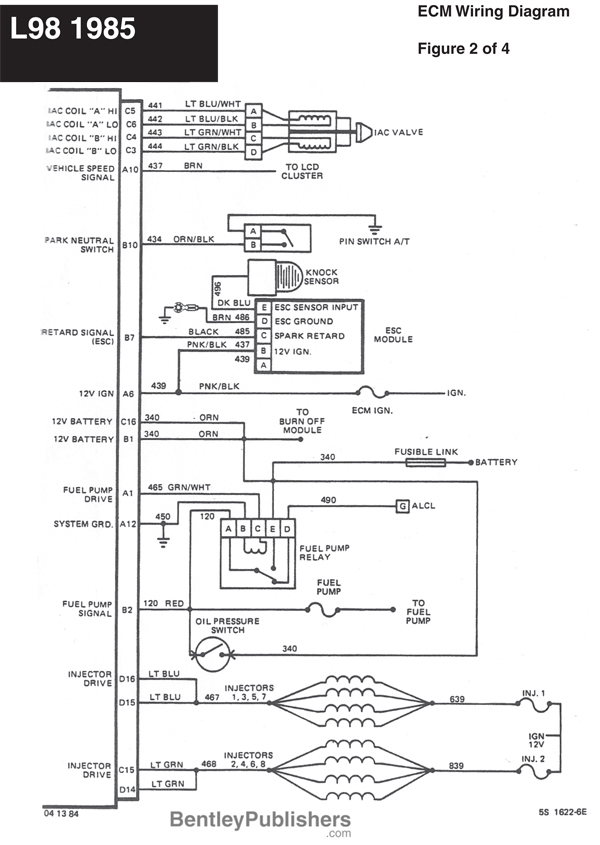

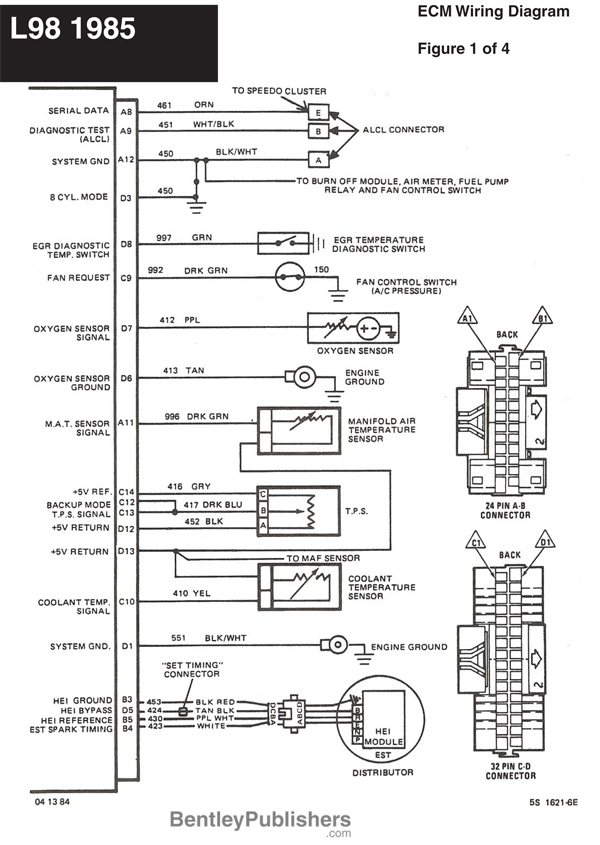

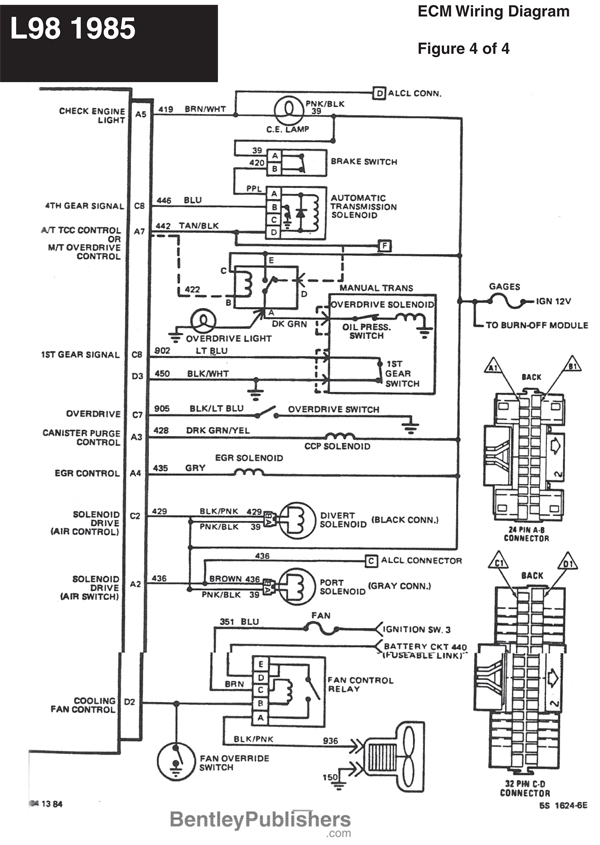

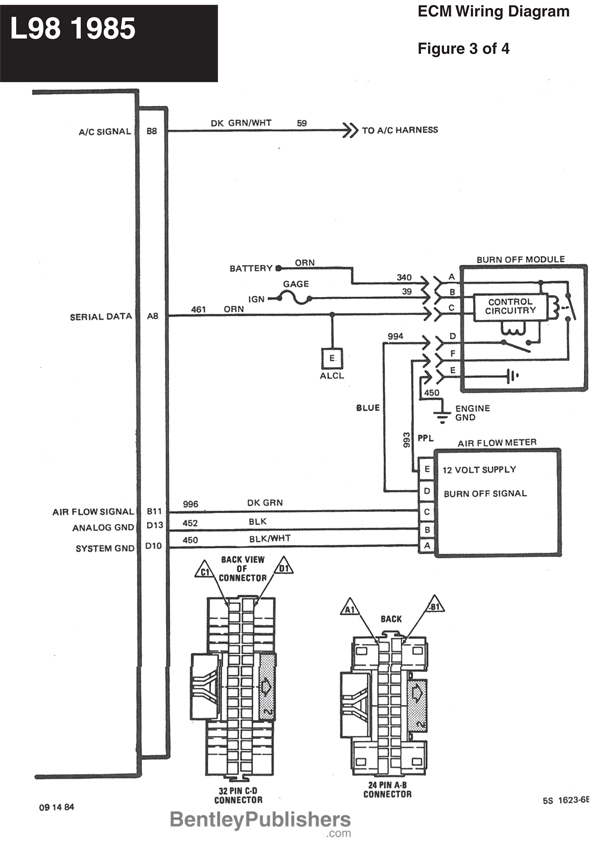

L98 engine wiring diagrams - 1985

Click here to view/download PDF

Click to go to top of page

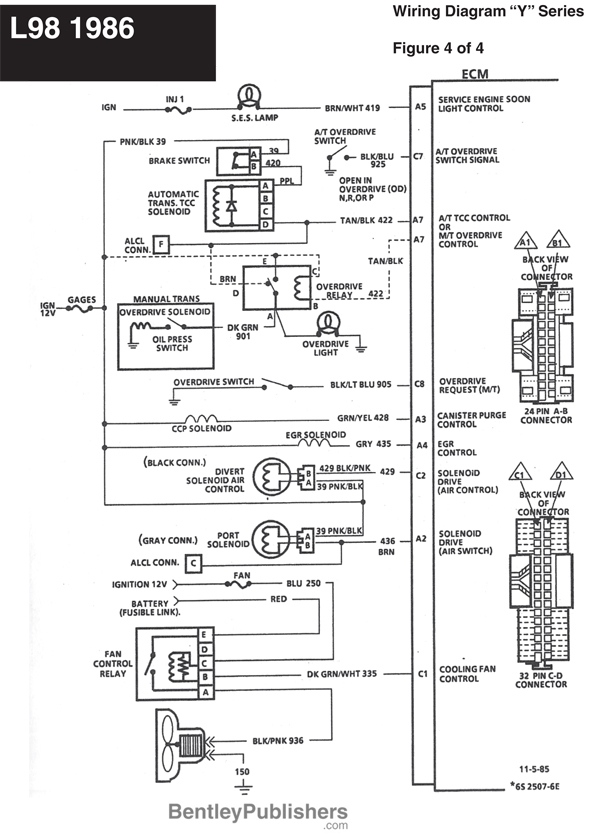

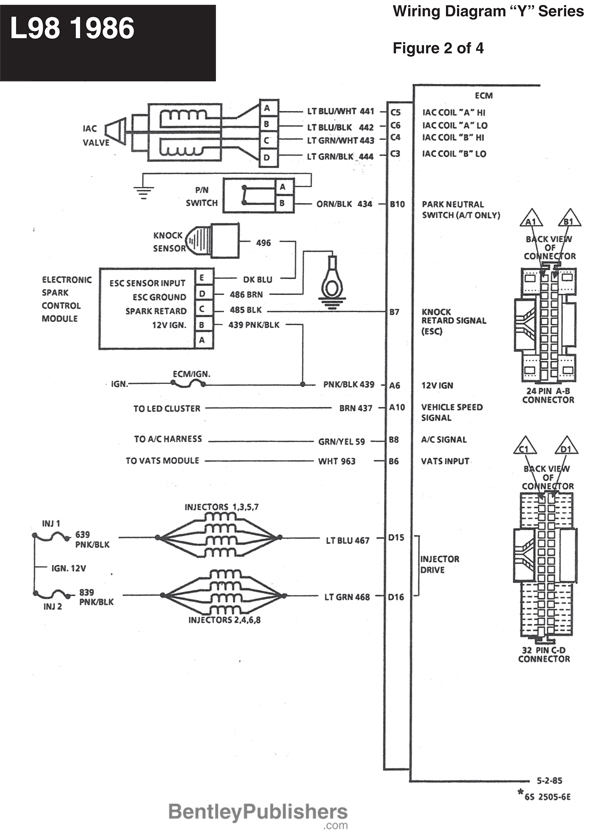

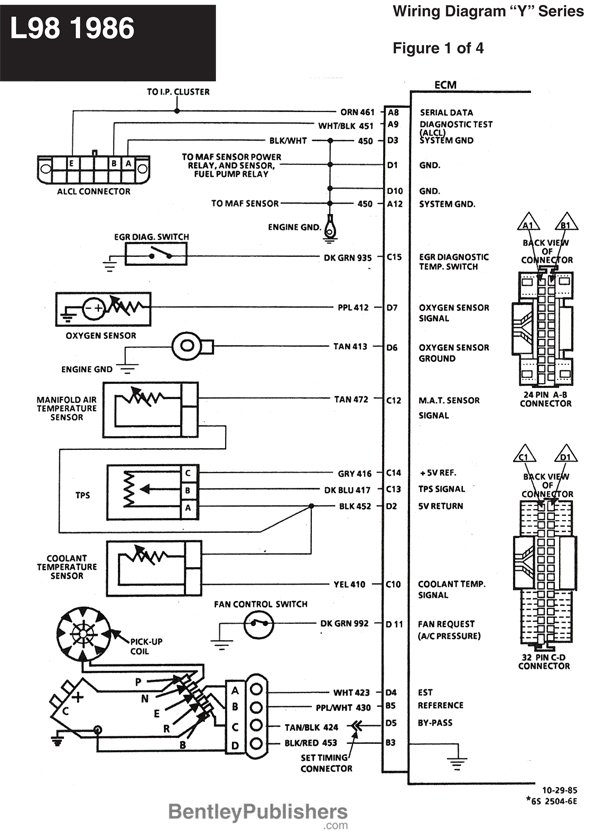

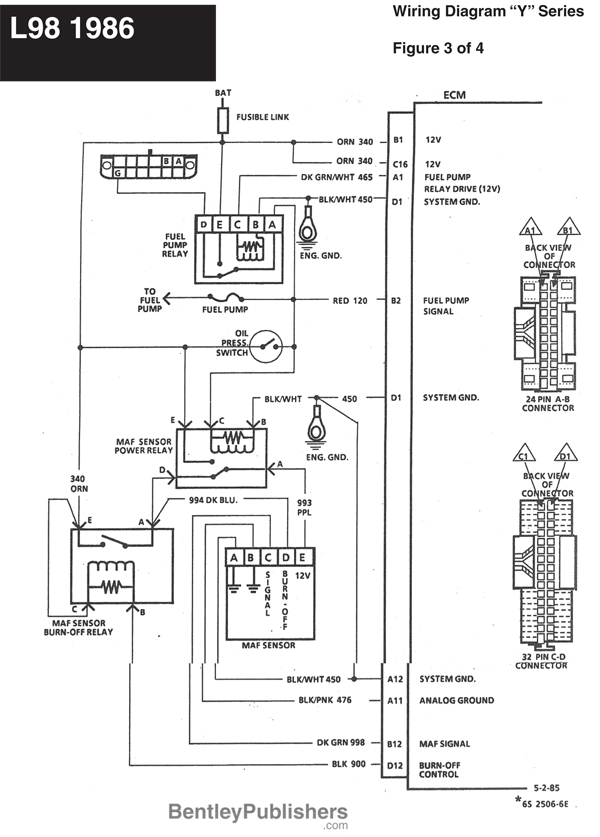

L98 engine wiring diagrams - 1986

Click here to view/download PDF

Click to go to top of page

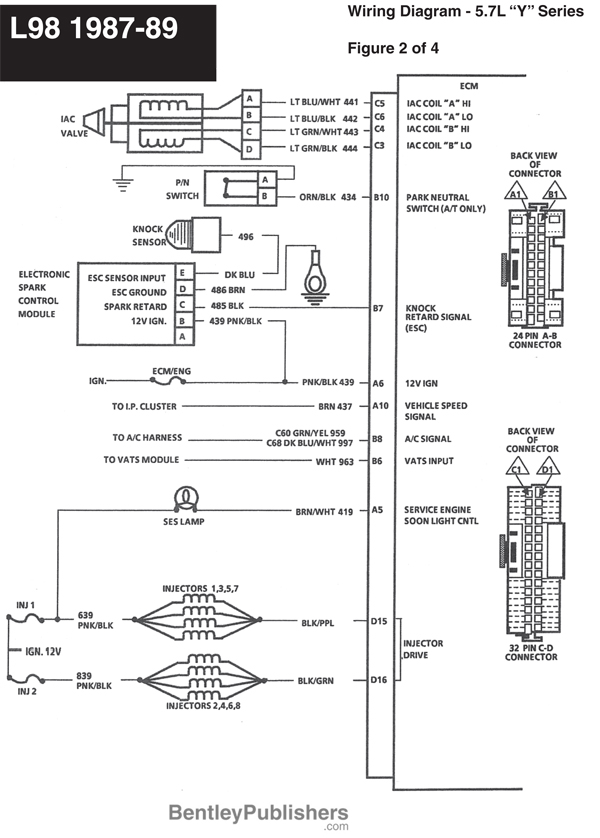

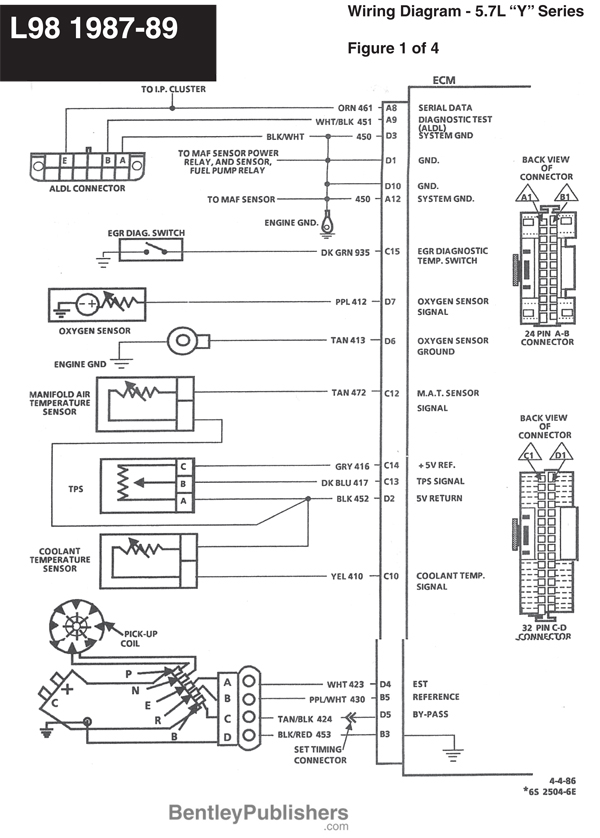

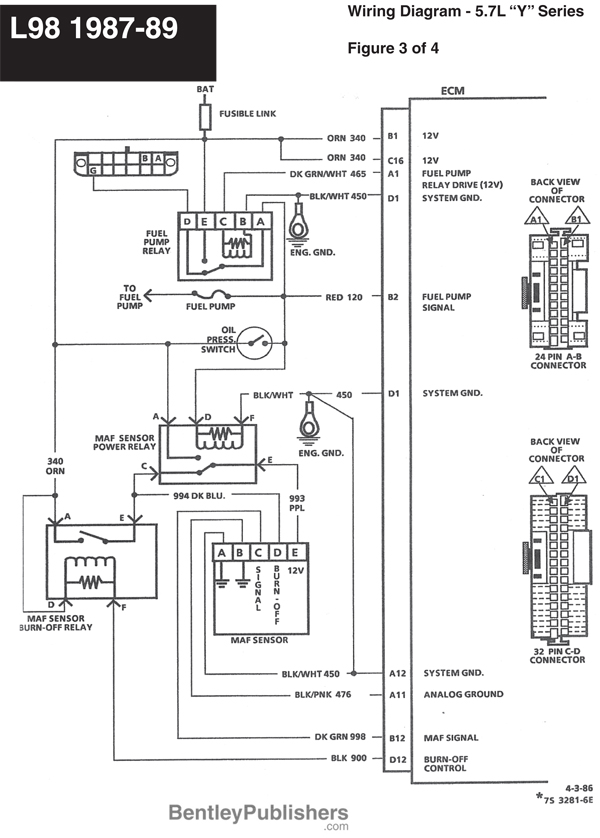

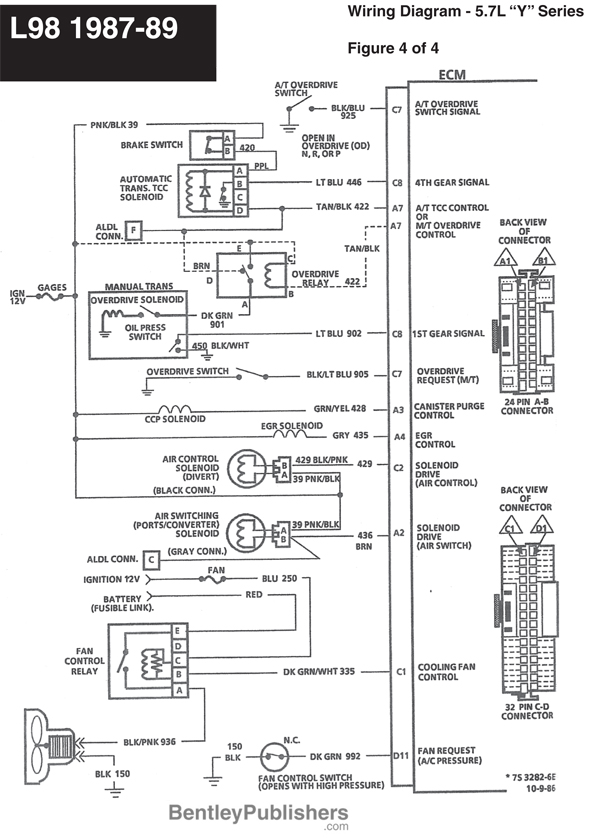

L98 engine wiring diagrams - 1987-1989

Click here to view/download PDF

Click to go to top of page

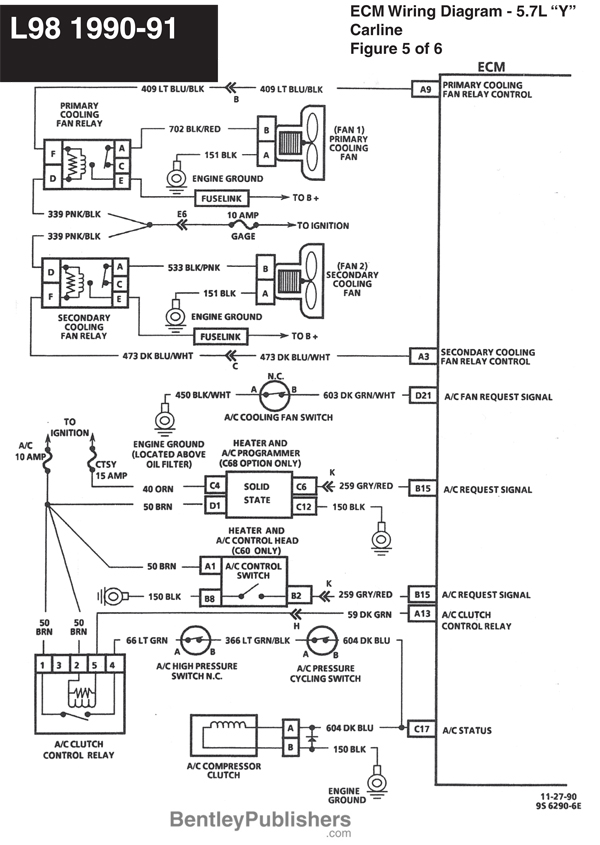

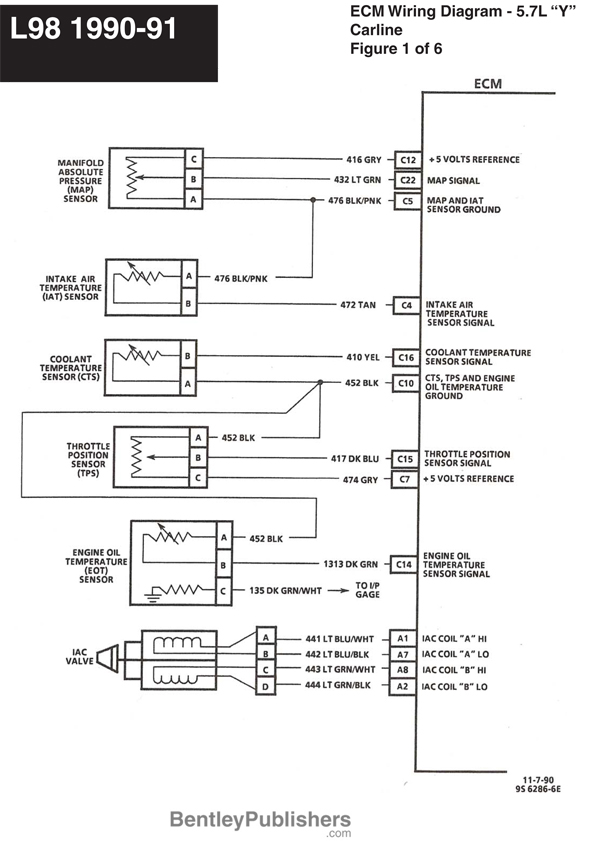

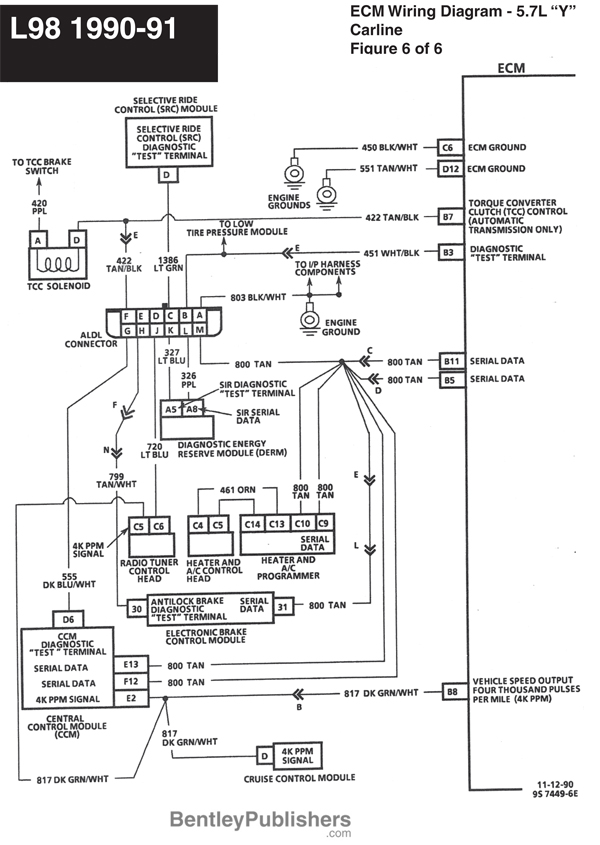

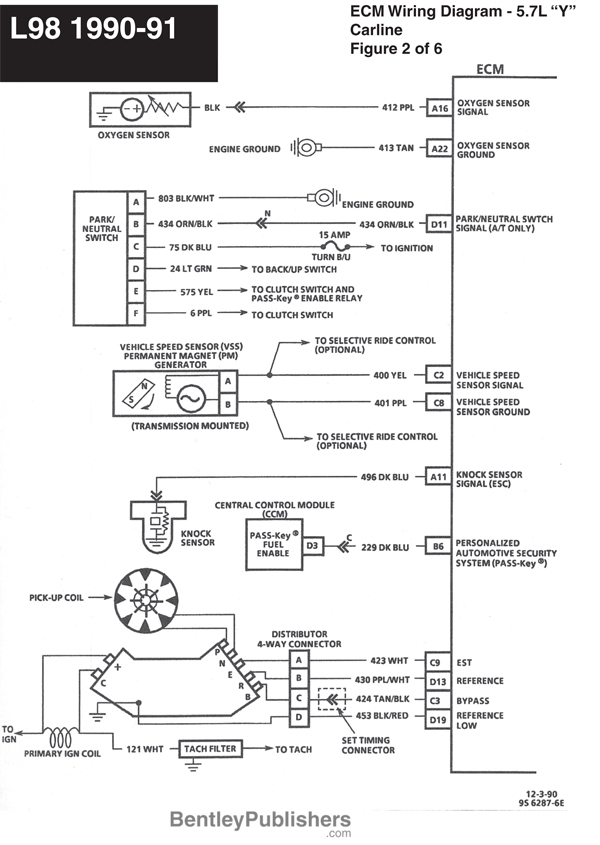

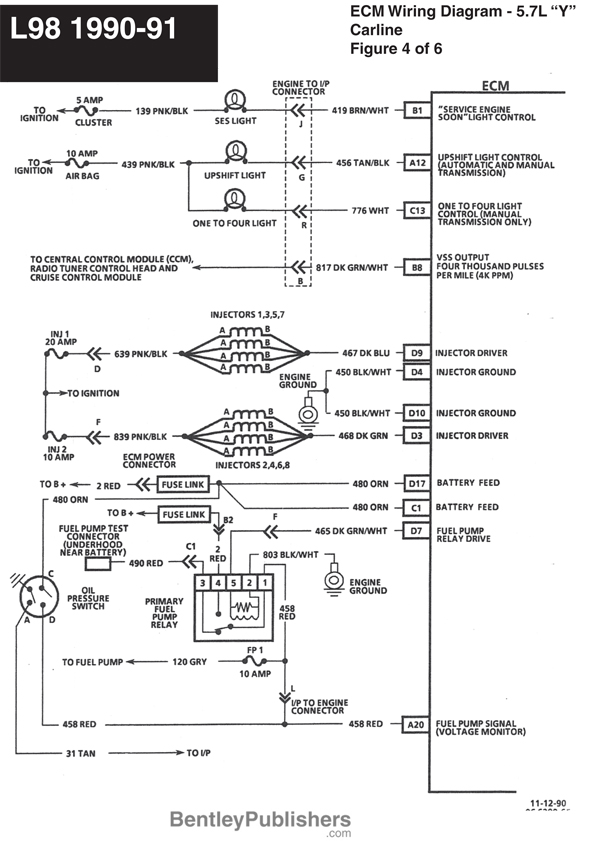

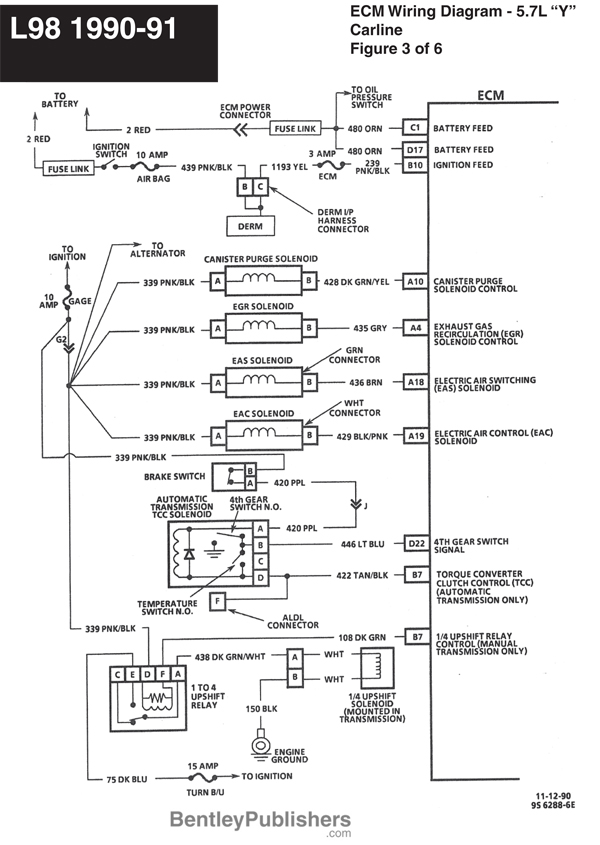

L98 engine wiring diagrams - 1990-1991

Click here to view/download PDF

Click to go to top of page
