Fuse panel, 1984 Volkswagen Scirocco and Jetta

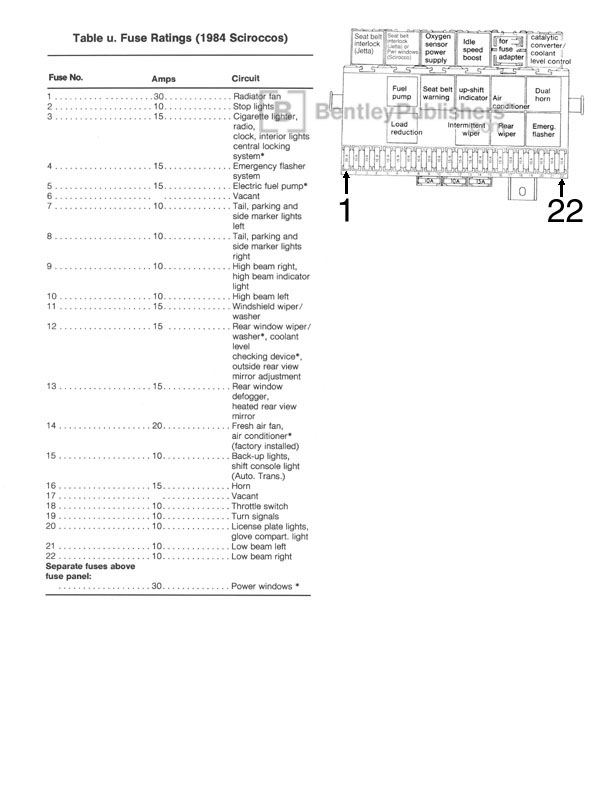

This table and graphic illustrate the fuse panel used in the 1984 Scirocco and Jetta. This has been included in the last few editions of the Volkswagen Rabbit, Scirocco, Jetta Service Manual: 1980-1984, gasoline models, including Pickup Truck, Convertible, and GTI.
