SECTION 4

ELECTRICAL SYSTEM

3. Fuses

Most of the fuses in the electrical system are located in a fuse box under the dashboard near the steering column. Fig. 3-1 is a diagram of a typical VW fuse box, although the fuse boxes of some vehicles covered in this Manual have only ten fuses rather than the twelve shown.

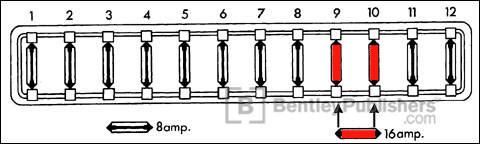

Fig 3-1. Typical fuse box. The location of the 16-amp fuses varies among model years.
